60W integrated solar street light
Lightweight and high-strength lamp body, with the surface treated by anti-corrosion process.The IP66 protection level ensures long-term stable operation. Withstand harsh environments such as typhoons, heavy rain and salt fog.
High Quality LifePo4 Battery
Outstanding safety performance, with over 2,000 cycles of charge and discharge.It supports continuous lighting for 5 to 7 rainy days, meeting the demand for multi-day environments without light.

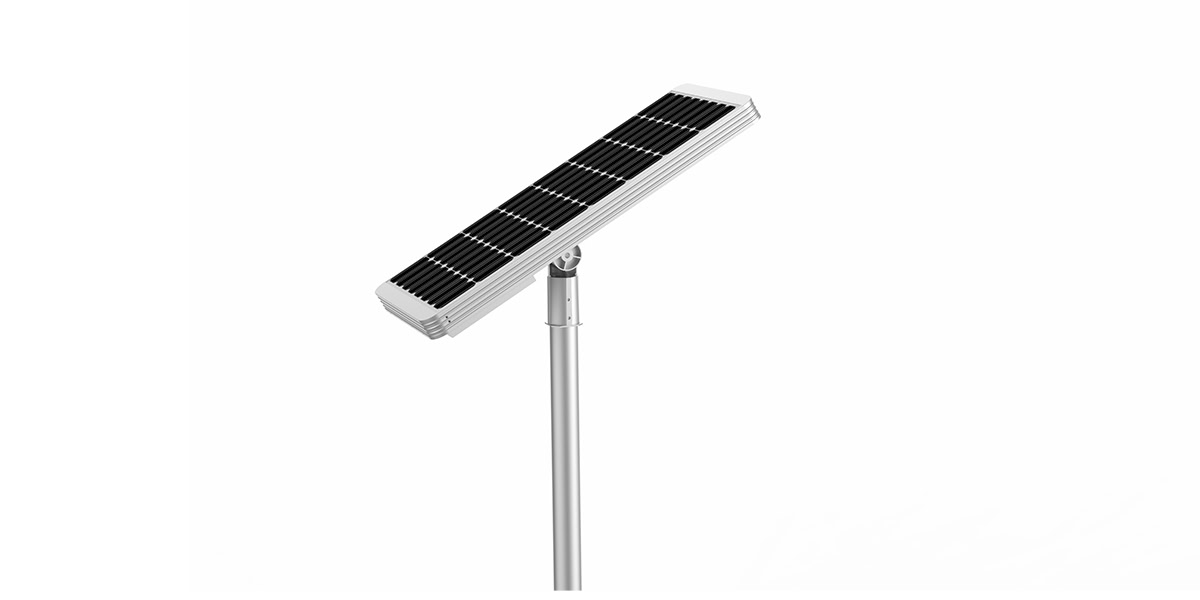

High Efficiency Monocrystalline Silicon Solar Panel
18V 60W solar panel, made of highly efficient polycrystalline material, has a light energy conversion rate as high as 22%.Solar panel can tilt southward (in the Northern Hemisphere) or northward (in the Southern Hemisphere) at a 15-30° angle for optimal sunlight absorption.

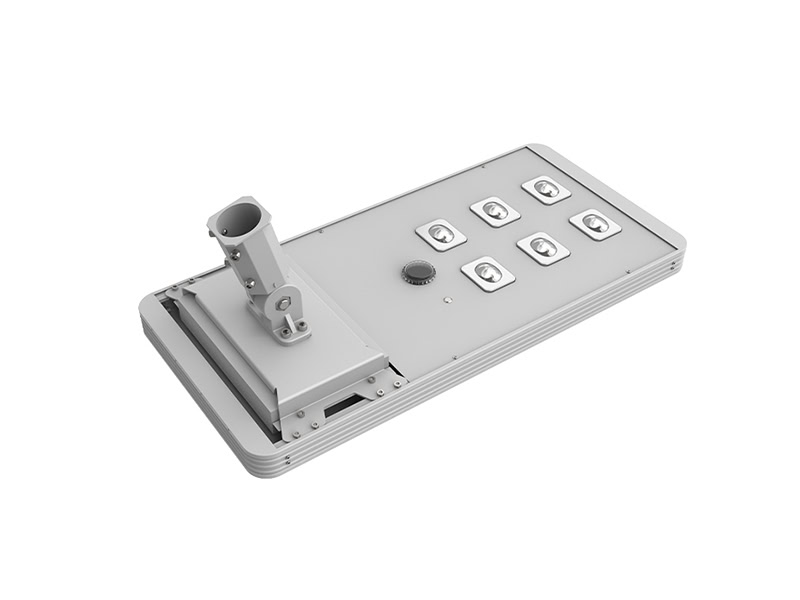

High Light Efficiency LED Chips
From renowned brands such as OSRAM, Bridgelux or Philips.36 high-brightness LED 5050 chips paired with optical-grade patented lenses, with a luminous flux of over 6000LM.The uniformity of light has been improved by 30%, effectively covering both sides of the road and reducing dark areas and dead corners.
Intelligent Sensor And Dimming Control
Integrated street light is equipped with an intelligent chip and supports dual modes of light control and time control. It can automatically identify day and night switching without manual intervention.
It intelligently adjusts the discharge power based on the recent weather conditions. For instance, it automatically reduces power consumption before consecutive rainy days to ensure that the lighting remains powered off during core periods.

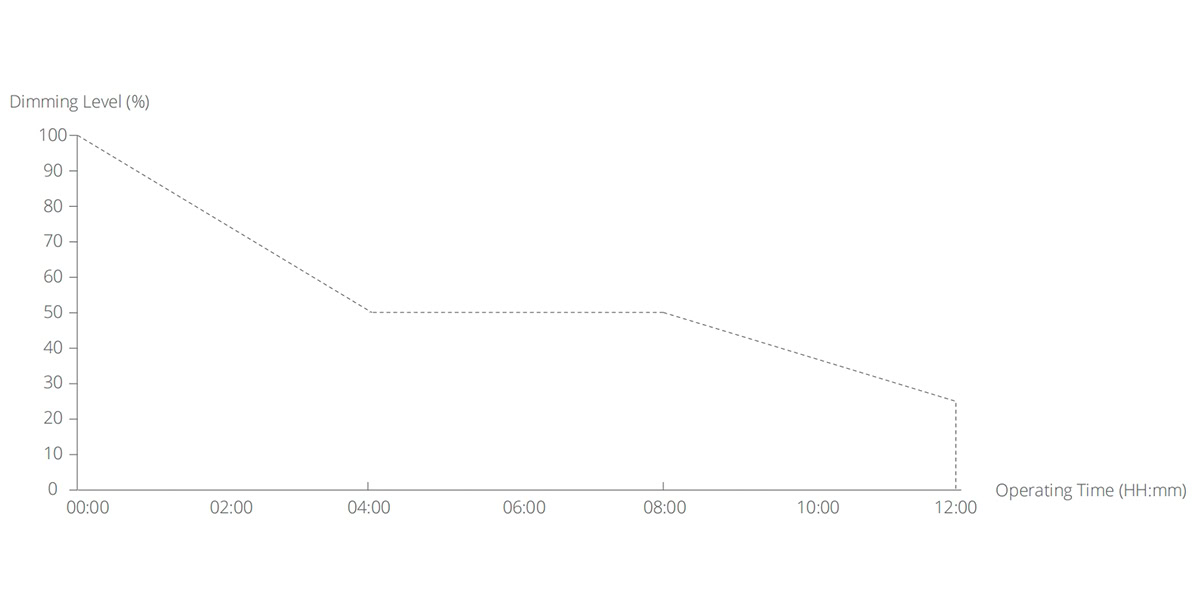

Standard Lighting Modes For Option
Full power 100% brightness, power gradually decreases to 50%, power maintains 25% low brightness.It supports microwave sensing function. When it detects human activity, it automatically increases the brightness. After the person leaves, it returns to a low-power state, further saving electricity.
MPPT Solar Charging Controller
Adopting the MovingTrack MPPT maximum power point tracking technology, the tracking efficiency is higher and the response speed is faster.
It has a DC detection function: When a DC input is detected, the battery voltage drops to the DC switching voltage point and then automatically switches to mains power supply.
When there is no DC input, the battery continuously discharges until it reaches the over-discharge protection point and then automatically shuts off the output.
Complementary functions to the municipal power supply
Solar street lamp system
In the event of insufficient battery power, the LED streetlights seamlessly switch to mains power (AC220V) via an AC/DC switching power supply. This intelligent dual-power design ensures continuous illumination by automatically supplementing energy from the grid when solar reserves are depleted, maintaining uninterrupted operation even during extended periods of low sunlight or high energy demand.

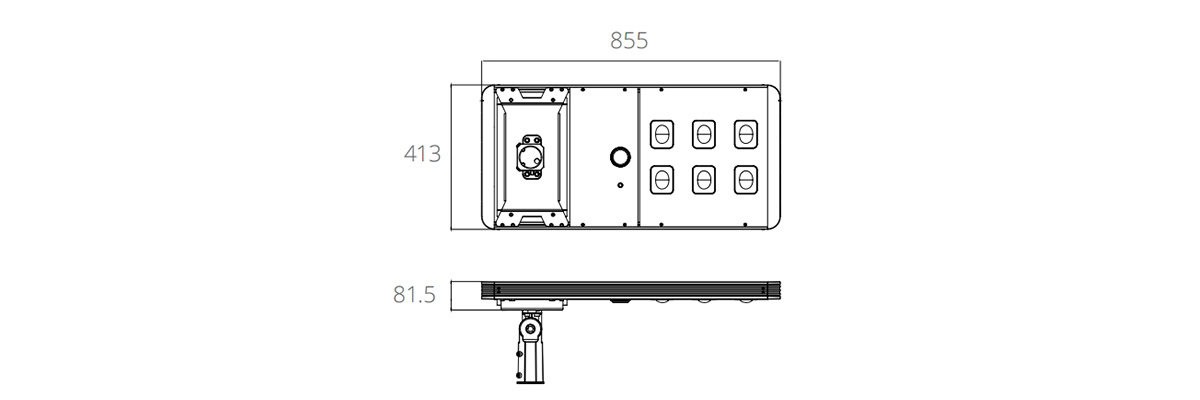

Size of 60W integrated solar street light

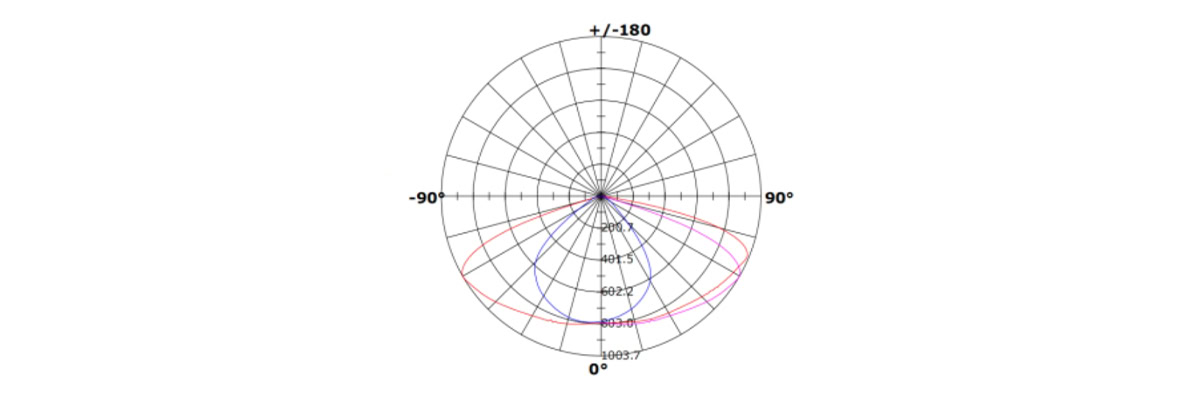

60W integrated solar street light Professional Light Distribution

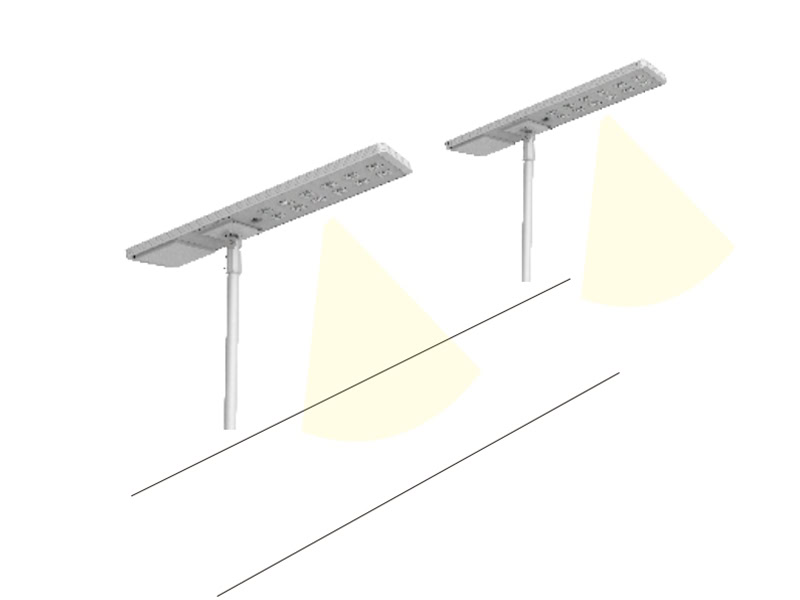

The professionally designed light distribution solution is tailored to the different needs of road lighting and regional lighting. It can precisely control the direction and range of light projection, evenly distributing the light over the areas that need illumination. This improves the brightness and uniformity of lighting.

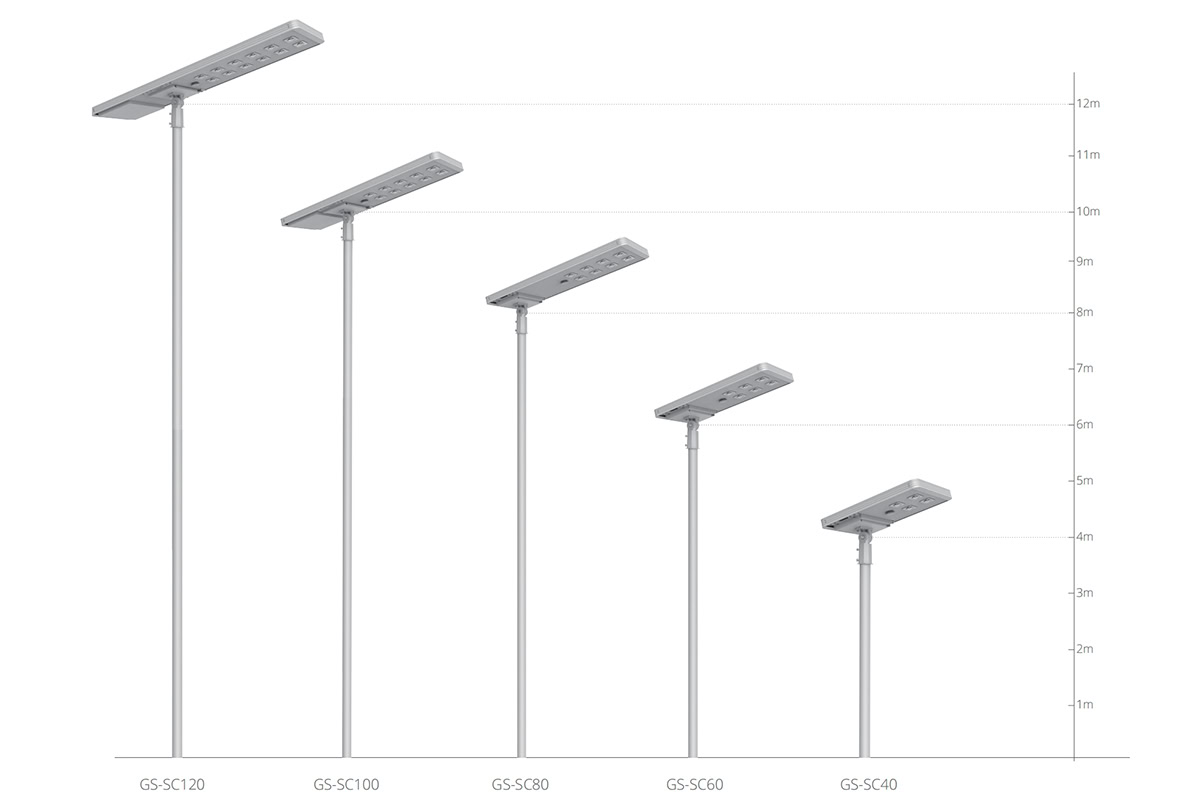

Different Wattages Of All In One Solar Street Lights
It is suitable for 60mm diameter lamp poles, with an installation height of 4 to 12 meters and a recommended spacing of 30 to 40 meters. Solar panels, batteries, controllers and light sources are integrated into a compact body and can be installed without wiring.
Datasheet Of 60W integrated
solar street light
Applications In Different Scenarios
All In One Solar Street Light - SC Series are widely used in outdoor scenarios requiring efficient and low-maintenance lighting, providing reliable illumination for diverse public and residential areas:
- Urban and rural areas: Suitable for main roads, side streets, and rural pathways, with no wiring required and easy installation to meet basic lighting needs.
- Scenic spots and courtyards: Ideal for parks, garden paths, and residential courtyards, combining environmental protection, energy saving, and technological aesthetics.
- Outdoor public spaces: Applied in community squares, parking lots, and campus areas, featuring IP66 waterproof and dustproof design for all-weather durability.
- Remote or off-grid locations: Perfect for areas without grid access, leveraging integrated solar energy absorption and intelligent lighting control for independent operation.
All in One Solar Street Light FAQs
Yes, it operates independently without grid power, making it ideal for rural and remote areas.
Higher luminous efficiency means brighter lighting with lower energy consumption, improving overall system performance.
It can support about 5 to 7 consecutive rainy days depending on configuration and usage mode.
5050 LED chips provide higher brightness and better light uniformity for road illumination.
It improves solar energy conversion efficiency and ensures stable battery charging performance.
Yes, its aluminum housing and IP66 protection help resist corrosion and salt fog.
Yes, brightness increases when movement is detected and reduces when no activity is present.
It uses high-efficiency monocrystalline solar panels with about 22% conversion rate.
