All in one led solar street light
Thickened die-cast aluminum shell, impact-resistant and corrosion-resistant, suitable for extreme weather conditions such as heavy rain, high temperature and severe cold.
304 stainless steel screws, rust-proof and crack-proof, do not rust even after long-term outdoor use, with professional anti-oxidation process, maintaining a new appearance for a long time.
All in one led solar street light High Quality LifePo4 Battery
The cycle life of lithium iron phosphate batteries is over 2000 times.They can operate within a wide temperature range of -20℃ to 60℃, have an IP66 protection level, and can run stably in heavy rain and sandstorm environments.
High Efficiency Monocrystalline Silicon Solar Panel
This solar street lamp is equipped with monocrystalline silicon solar panels, and its photoelectric conversion efficiency is as high as 22%.
It can efficiently convert solar energy into electricity, providing a stable power supply for street lamps and ensuring the lighting demands.
High Light Efficiency LED Chips
It adopts 2835/3030 lamp chips, with an overall luminous efficacy of over 185lm/W. The brightness is optimized, making it energy-saving and highly efficient.
From renowned brands such as OSRAM, Bridgelux or Philips.The LED has a lifespan of up to 50,000 hours, is durable and reduces replacement costs.
Intelligent Sensor And Dimming Control of All in one led solar street light
Built-in precision sensor detects movement within 10-15m.Auto on/off: 100% brightness when occupied → reverts to 30% after customizable delay (e.g., 30s).This function can help to achieve 70% energy savings with intelligent dimming.
Standard Lighting Modes For Option
Multi-mode working system, light control + time control, automatically turns on the lights at sunset, and can be set to turn off the lights at 3, 5, and 8 hours. It supports PIR human body sensing (fully illuminated when a person comes and half illuminated when they leave) and microwave radar sensing , reducing power consumption by over 60%.
MPPT Solar Charging Controller
Adopting the MovingTrack MPPT maximum power point tracking technology, the tracking efficiency is higher and the response speed is faster.
It has a DC detection function: When a DC input is detected, the battery voltage drops to the DC switching voltage point and then automatically switches to mains power supply.
When there is no DC input, the battery continuously discharges until it reaches the over-discharge protection point and then automatically shuts off the output.
Complementary functions to the municipal power supply
All in one led solar street light
In the event of insufficient battery power, the LED streetlights seamlessly switch to mains power (AC220V) via an AC/DC switching power supply. This intelligent dual-power design ensures continuous illumination by automatically supplementing energy from the grid when solar reserves are depleted, maintaining uninterrupted operation even during extended periods of low sunlight or high energy demand.

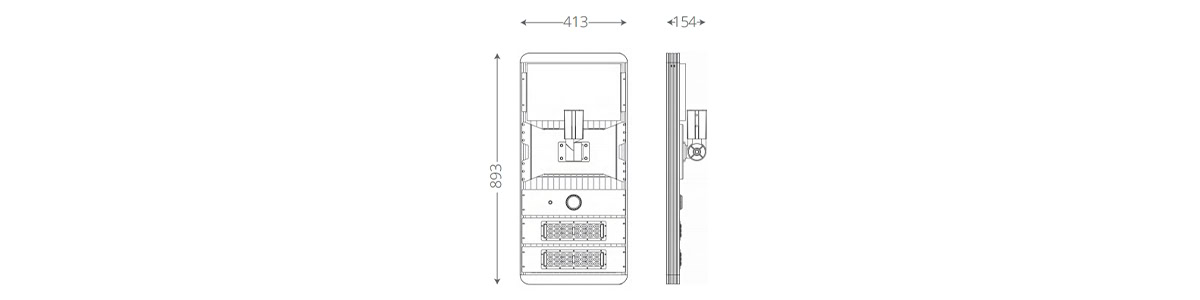

Size of All In One LED Solar Street Light

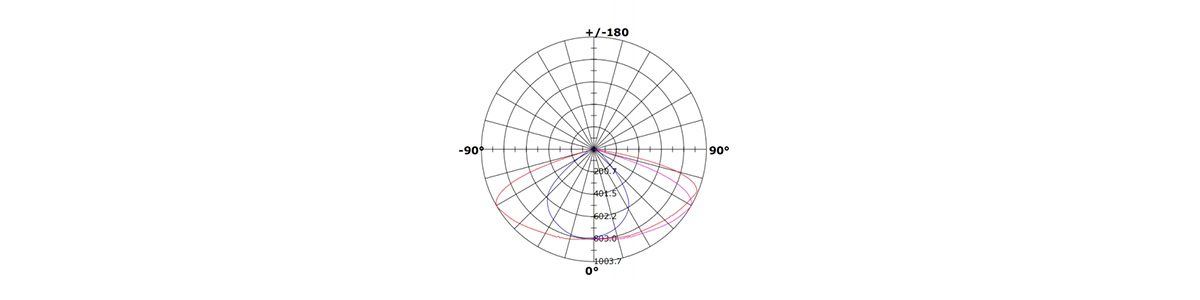

LED All In One Solar Street Light Professional Light Distribution
The 70°(W) × 150°(L) asymmetric beam angle is specifically engineered for road lighting applications,providing optimal longitudinal light spread along thoroughfares, while its wide lateral coverage simultaneously ensures effective area illumination.

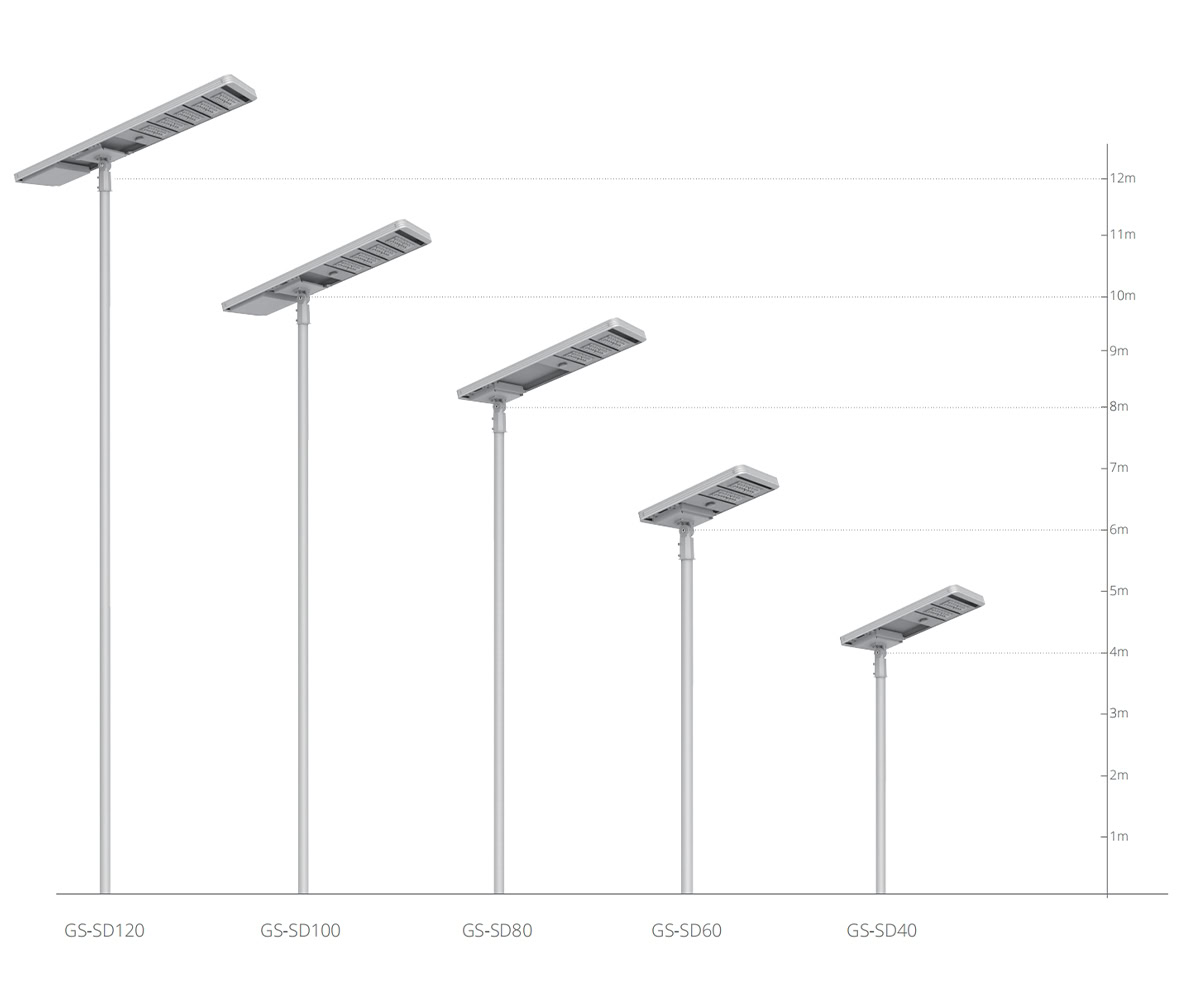

Different Wattages Of All In One Solar Street Light
Datasheet Of LED All In One Solar Street Light
Applications In Different Scenarios
All In One Solar Street Light – SD Series are widely used in outdoor scenarios requiring reliable and energy-efficient lighting, providing uniform illumination for various public and urban areas:
- Urban and rural roads: Ideal for main streets, side roads, and rural pathways, with adjustable illumination area and angle to adapt to different road widths.
- Public spaces: Suitable for parks, plazas, and community areas, leveraging 12-hour continuous lighting and adaptive dimming to meet extended usage needs.
- Industrial and commercial areas: Applied in parking lots, factory perimeters, and scenic spots, featuring IP66 waterproof rating and -20°C~+65°C working temperature for all-weather reliability.
- Remote or off-grid locations: Perfect for areas without access to grid power, thanks to integrated solar panels and long-cycle LiFePO4 batteries for independent operation.
All in One Solar Street Light FAQs
It integrates the solar panel, LiFePO4 battery, controller, and LED light into a single housing, eliminating external wiring and simplifying installation.
It automatically stores solar energy during the day and powers the LED lighting at night via an intelligent controller.
It can reach over 180 lm/W using high-efficiency LED chips.
It uses LiFePO4 lithium batteries designed for long cycle life and stable performance.
The system supports more than 2000 charge-discharge cycles with dual protection design.
It uses MPPT (Maximum Power Point Tracking) solar charge controller technology.
It increases brightness when motion is detected and reduces power when no movement is present.
It uses die-cast aluminum with anti-corrosion treatment for durability.
