Inground Light Fixtures – L2 Series

Inground light fixtures, 2/2.5/3.5W per light source, OSRAM leds, single/RGB/RGBW/DMX control system, 8°/12°/25°/40°/60°, china manufacturer.

battery-eco

Light efficiency

90lm/W
circuit-voltmeter

Input Voltage

DC24V/AC220V
keyframes

Materials

6063 Aluminum alloy+8mm tempered glass+stainless steel face ring
angle

Beam Angle

8°/12°/25°/40°/60°
cloud-rain

IP Rating

IP67
sparkles

Color Temperature

RGB/RGBW/DMX/2700K/3000K/3500K/4000K
clock-2

Lifespan

>50000hours
replace

Warranty

5 Years

Inground Light Fixtures

Linear underground lamp adopts a thickened 6063 aluminum alloy lamp body and 8mm tempered glass, and a luminous efficacy as high as 90lm/W.
The face ring is made of 316 stainless steel, which is rainproof, corrosion-resistant and impact-resistant. The aluminum shell has excellent heat conduction and dissipation performance.
linear ground lights aluminum

Features Of Inground Light Fixtures

The strip ground lamps offer different power configurations to meet diverse brightness requirements. All of them adopt OSRAM brand leds and feature high quality, long lifespan and high luminous efficiency.
The color temperature types cover single color/RGB/RGBW. The color adjustment is flexible and suitable for various scenarios such as decoration and atmosphere creation.
Easy to install, it can be fixed with screws or installed in an installation box. It has an IP67 waterproof rating.

Intelligent Control Of LED Inground Linear Light​

underground light dali controlunderground light changing color
It can support DALI/0-10V Control dimmable.
DALI Dimming: Suitable for scenarios that require precise control and intelligent management.
0-10V dimming: Suitable for simple, low-cost dimming needs.
Changing colors from 2700K to 4000K, RGB/RGBW/DMX control for option.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.

Datasheet Of Inground Light Fixtures

Model No.
GS-L2-195
GS-L2-328
Model
GS-L2-195-A/B/C
GS-L2-328-A/B/C
Materials
6063 Aluminum alloy+8mm tempered glass+stainless steel face ring
Light Efficiency
90lm/W
Driver
CREE/OSRAM
Beam angle
8°/12°/25°/40°/60°
PF
>0.95
LED Lifespan
>50000 hours
IP
IP67
Dimmable ways
DALI/0-10V
Impact resistance
IK08
Working temperature
-30°℃ - +55℃
CRI
>80
CCT
3000K/4000K/5000K/6000K/RGBW/DMX
Warranty
5 years

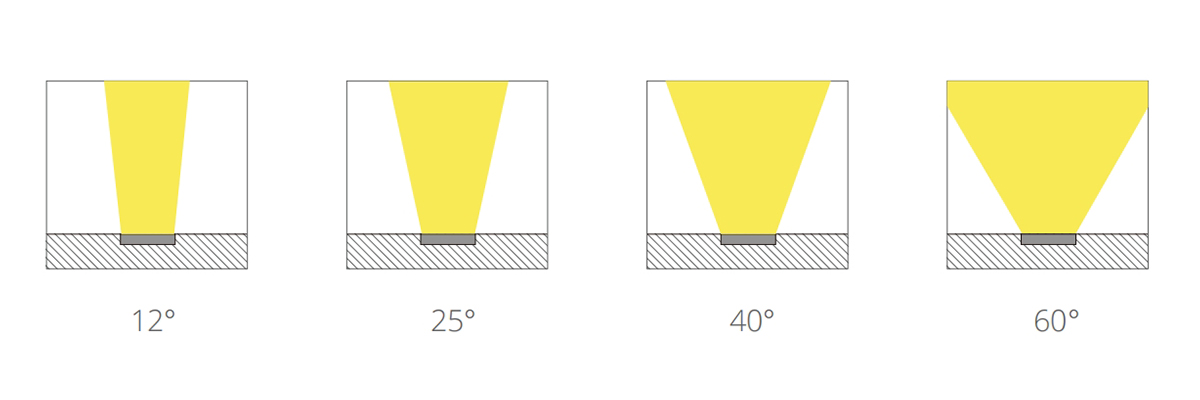

Inground Light Fixtures Beam Angles

Various beam angles for option, 8°/12°/25°/40°/60°.

With optical lens equipped, the light can change beam angle based on your need.
inground light fixtures beam angle

Inground Linear Light Parts Addition

surface light of led light inground
Surface Light
polarization of inground light
Polarized design
Stretch Film of led light inground
Stretch flim of LED light
honecomb of inground light
Honeycomb

Inground Linear Light Sizes

inground light fixtures size

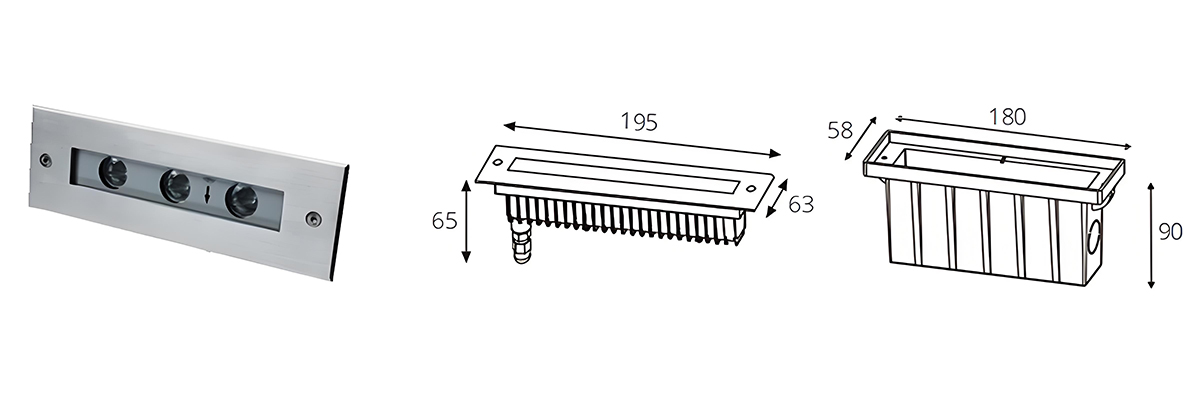

GS-L2-195 Series
inground light fixtures sizes

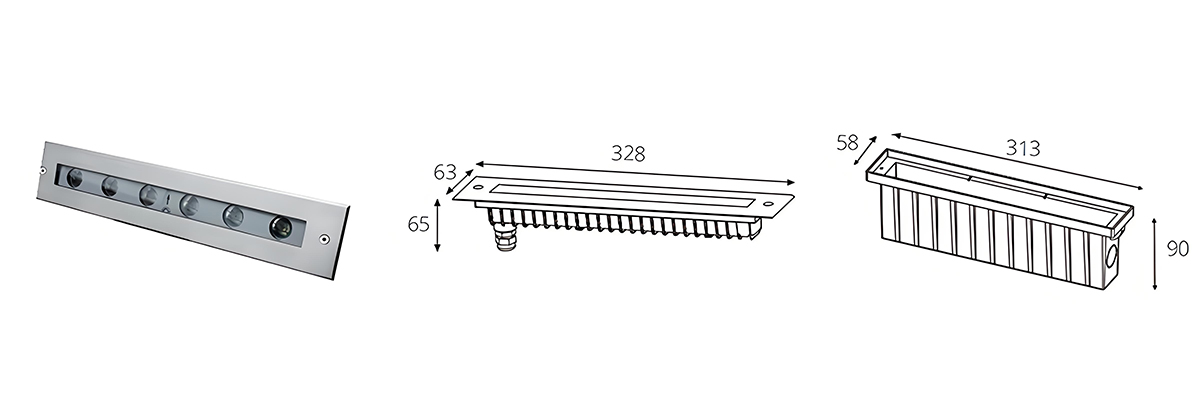

GS-L2-328 Series

Durable Underground Lights Applications

It is widely applicable in various scenarios, such as garden landscapes, commercial plazas, pedestrian streets, and exterior wall lighting of buildings.
From courtyards to landmarks, from commercial areas to art, frameless linear underground lights, with their "invisible power", make every beam of light the finishing touch of the scene.
led inground lights landscape lighting
led inground landscape usage by GS LED
linear ground lighting landscape lighting

Related Products

LED linear light trimless inground light
Recessed Ground Lights – FL Series
in-ground-landscape-lights-linear-768x768
Underground Landscape Lights – L Series

Inground Light Fixtures FAQs

Inground Light Fixtures are commonly used for architectural lighting, landscape accents, public spaces and commercial outdoor environments.

Recessed installation keeps the fixture hidden within the ground, preserving the visual appearance of the surrounding environment.

Yes. They can be used to emphasize columns, façades, entrances and other architectural details.

Yes. They are frequently specified for urban developments, civic spaces and public infrastructure projects.

Yes. Proper beam selection and placement can effectively highlight textures, edges and structural elements.

Yes. They can create visual interest while maintaining a clean and unobtrusive appearance.

Target height, lighting distance, beam angle and desired brightness should all be considered.

They offer discreet installation, flexible lighting effects and strong architectural integration for modern outdoor environments.
