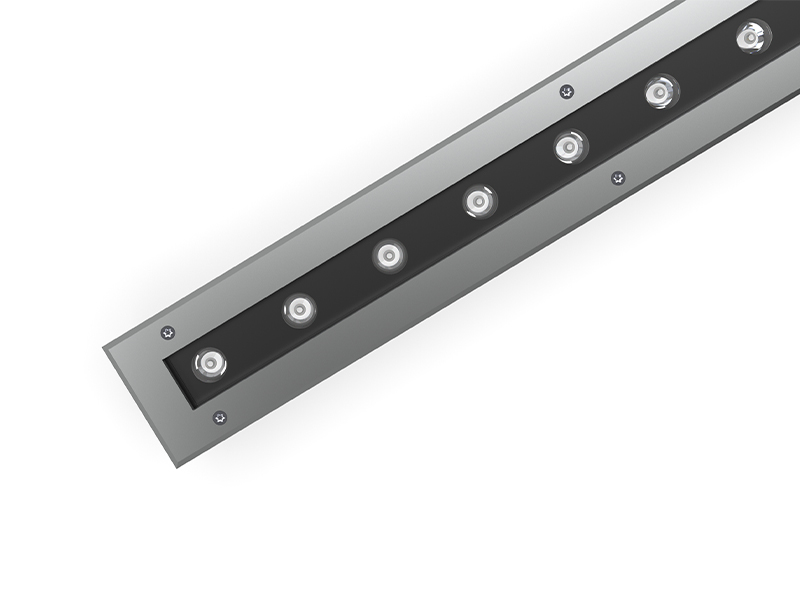

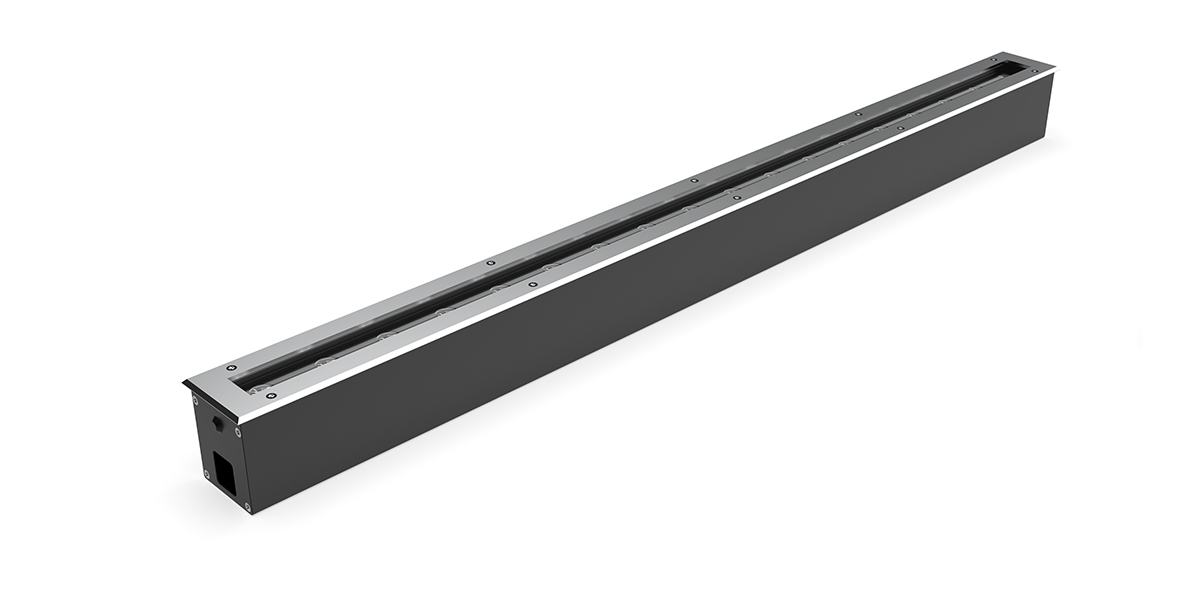

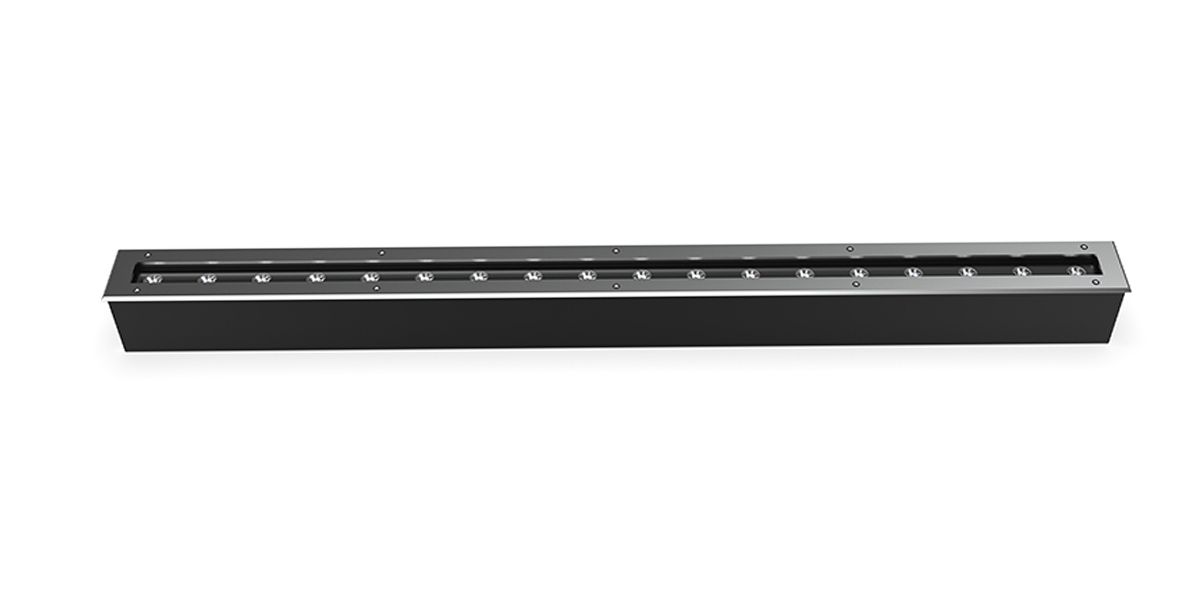

Underground Landscape Lights

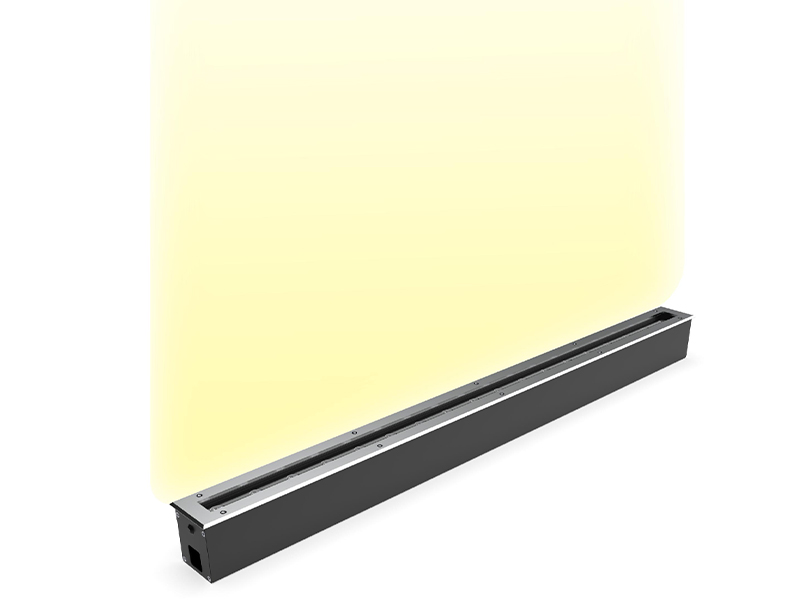

Linear underground lamp adopts a thickened 6063 aluminum alloy lamp body and 8mm tempered glass, and a luminous efficacy as high as 90lm/W.
It offers 18/24/36/48W power and single color /RGB /RGBW light color options. The light source can be selected from OSRAM/CREE. It supports DMX512 control and anti-glare grid design.
It offers 18/24/36/48W power and single color /RGB /RGBW light color options. The light source can be selected from OSRAM/CREE. It supports DMX512 control and anti-glare grid design.
Underground Landscape Lights
Linear underground lamp adopts a thickened 6063 aluminum alloy lamp body and 8mm tempered glass, and a luminous efficacy as high as 90lm/W.
It offers 18/24/36/48W power and single color /RGB /RGBW light color options. The light source can be selected from OSRAM/CREE. It supports DMX512 control and anti-glare grid design.
It offers 18/24/36/48W power and single color /RGB /RGBW light color options. The light source can be selected from OSRAM/CREE. It supports DMX512 control and anti-glare grid design.
Stainless Steel Face Ring Frame
The frame is made of high-strength 316 stainless steel, which can withstand the trampling of pedestrians and the crushing of vehicles.
The stainless steel frame has the characteristics of acid and alkali resistance and salt spray corrosion resistance, and is suitable for harsh environments such as coastal areas and industrial zones.
The stainless steel frame has the characteristics of acid and alkali resistance and salt spray corrosion resistance, and is suitable for harsh environments such as coastal areas and industrial zones.

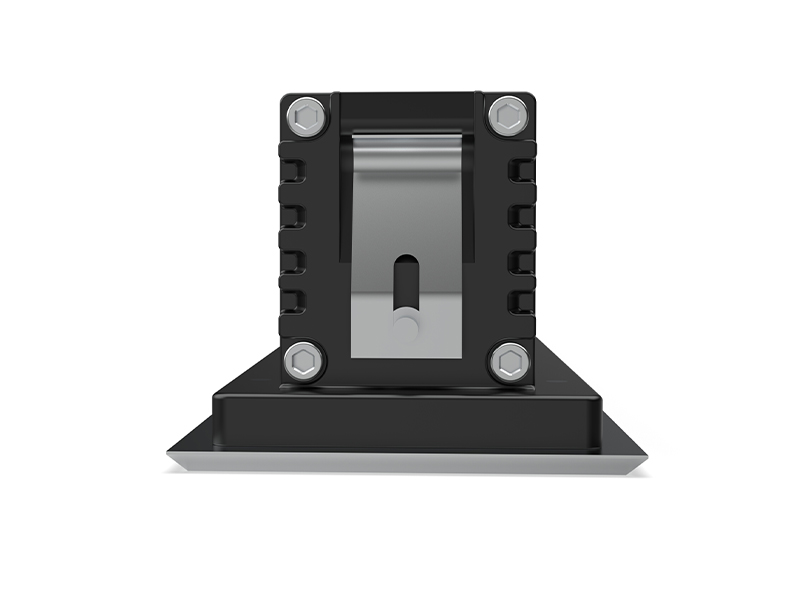

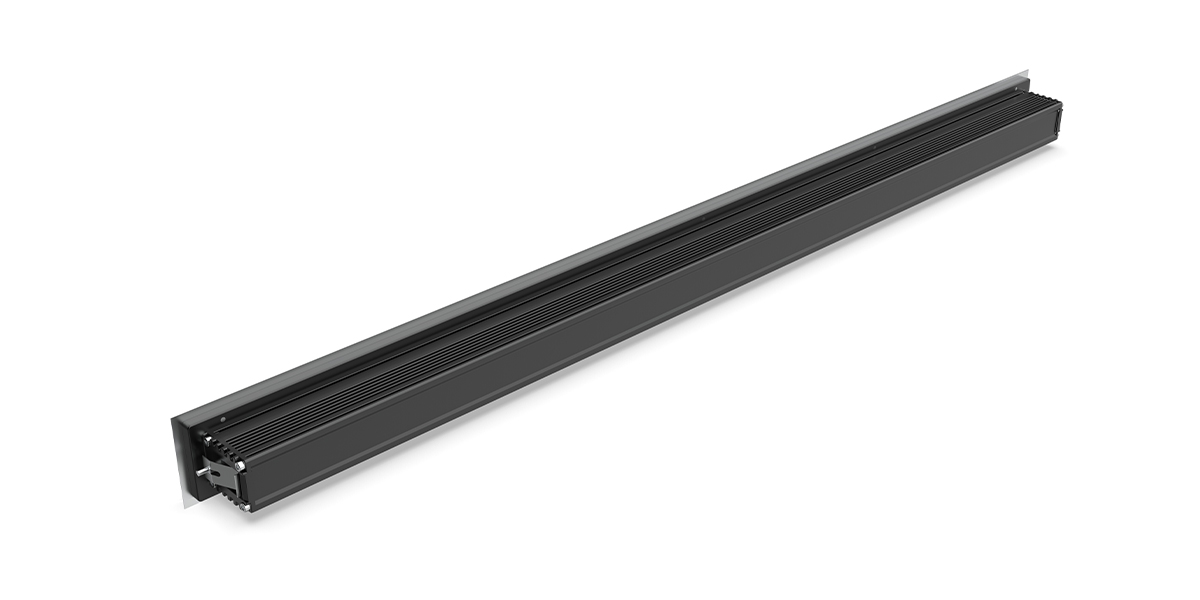

Underground Landscape Lights Structure
The lamp body is die-cast from 6063 aluminum alloy, with a 316 stainless steel cover plate and 8mm tempered glass on the surface.
The high-density material ensures durability and impact resistance, with excellent corrosion resistance, making it suitable for harsh outdoor environments such as humidity and salt spray.
The high-density material ensures durability and impact resistance, with excellent corrosion resistance, making it suitable for harsh outdoor environments such as humidity and salt spray.

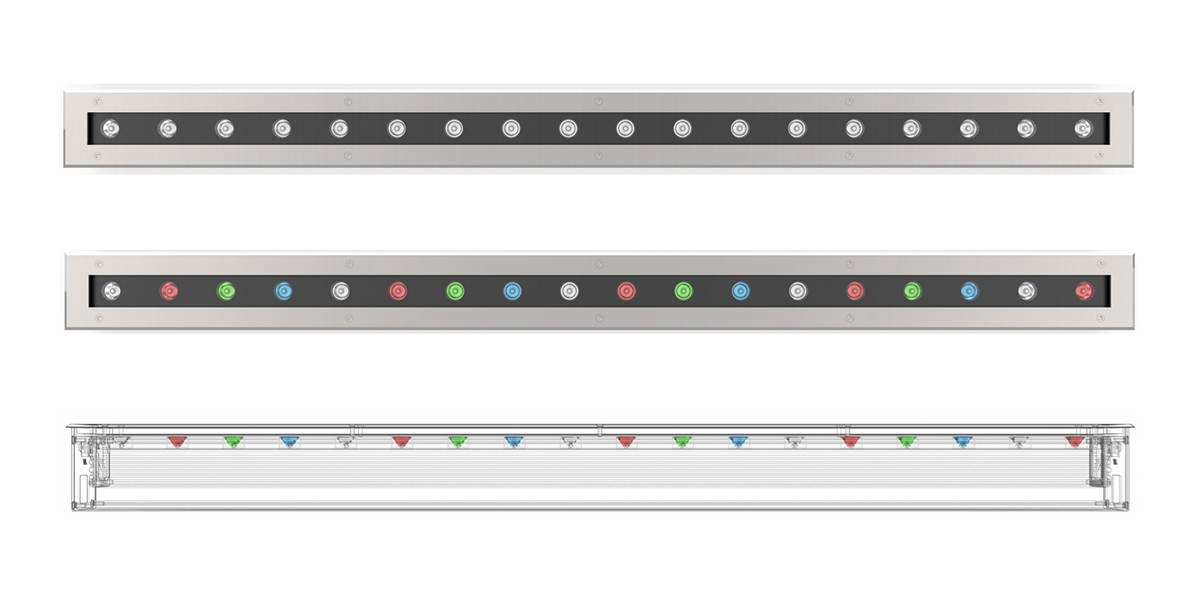

RGBW Effect Underground Landscape Lights
Supports monochromatic, RGB (three-color combination), and RGBW (four-color combination) light sources, along with DMX512 control system.
Flow Channel Design And Good Heat Dissipation Ability
Linear LED underground lights increase heat dissipation area by 80% via flow channel design & optimize heat conduction paths,boosting dissipation speed by 50%.
This rapidly lowers LED operating temps to reduce high-temperature performance degradation & lifespan shortening.
This rapidly lowers LED operating temps to reduce high-temperature performance degradation & lifespan shortening.
Intelligent Control Of LED Inground Linear Light
Changing colors from 2700K to 4000K, RGB/RGBW/DMX control for option.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.
It can support DALI/0-10V Control dimmable.
DALI Dimming: Suitable for scenarios that require precise control and intelligent management.
0-10V dimming: Suitable for simple, low-cost dimming needs.
DALI Dimming: Suitable for scenarios that require precise control and intelligent management.
0-10V dimming: Suitable for simple, low-cost dimming needs.
IP67 Waterproof Grade Linear Inground Light
The joint of the lamp body is embedded with imported anti-aging silicone rubber sealing rings. It can still work normally after a 24-hour water immersion test.
With an IP67 waterproof rating, it is fully suitable for damp environments such as fountains and pool sides.
With an IP67 waterproof rating, it is fully suitable for damp environments such as fountains and pool sides.
Datasheet Of Underground Landscape Lights
Model No.
GS-L75-18W
GS-L75-24W
GS-L75-36W
GS-L75-48W
Power
18W
24W
36W
48W
Light Efficiency
90lm/W
LED Brand
OSRAM/CREE
Materials
6063 Aluminum alloy+8mm tempered glass+stainless steel face ring
Beam angle
10°, 15°, 30°, 45°, 60°, 10×60°, 20×45°, 18+45°Asymmetric
PF
>0.95
LED Lifespan
>50000 hours
IP
IP67
Dimmable ways
DALI/0-10V
Impact resistance
IK08
Working temperature
-30℃ -+55℃
CRI
>80
CCT
RGB/RGBW/DMX/2700K/3000K/3500K/4000K
Size
1030*75*H84mm
Warranty
5 Years

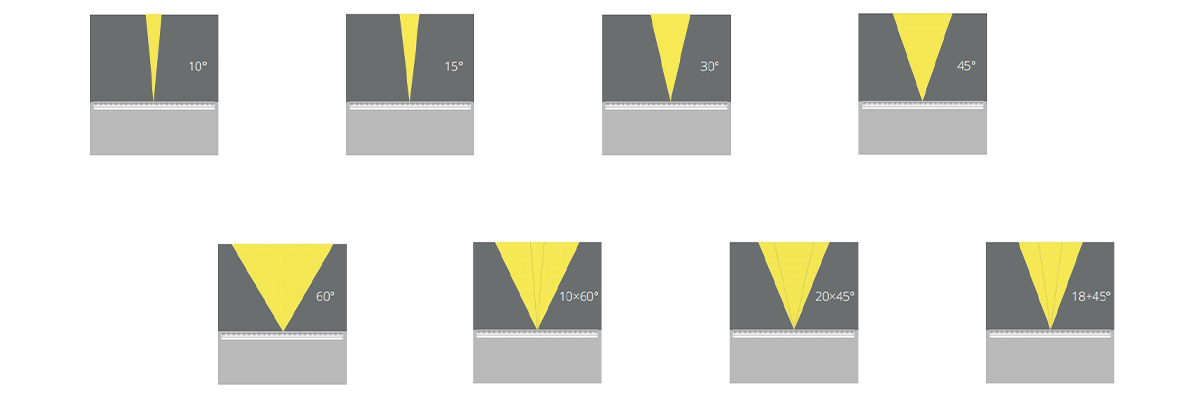

Underground Landscape Lights Beam Angles
Various beam angles for option, 10°, 15°, 30°, 45°, 60°, 10×60°, 20×45°, 18+45°Asymmetric.
With optical lens equipped, the light can change beam angle based on your need.
With optical lens equipped, the light can change beam angle based on your need.
Underground LED Lights Ground Parts Addition
Surface Light
Polarized design
Stretch flim of LED light
Honeycomb

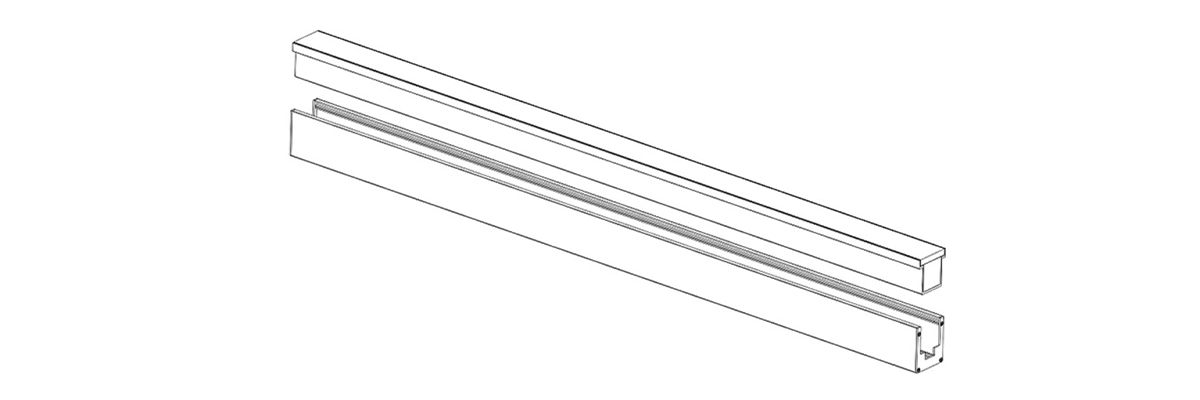

Embedded Parts For Conveniently Installation And Maintenance
The embedded parts adopt customized metal frames, and their dimensions are exactly matched with those of the lamps.
When the lamp needs maintenance, simply unscrew the hidden quick-release screw on the top of the embedded part, and the lamp module can be removed as a whole.
When the lamp needs maintenance, simply unscrew the hidden quick-release screw on the top of the embedded part, and the lamp module can be removed as a whole.

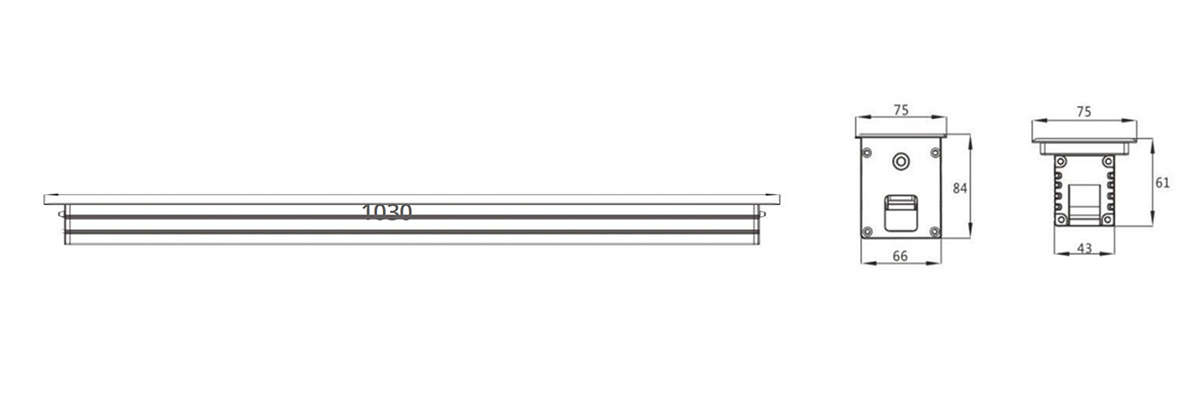

Size Of Underground Landscape Lights
Durable Underground Lights Applications
It is widely applicable in various scenarios, such as garden landscapes, commercial plazas, pedestrian streets, and exterior wall lighting of buildings.
From courtyards to landmarks, from commercial areas to art, frameless linear underground lights, with their "invisible power", make every beam of light the finishing touch of the scene.
From courtyards to landmarks, from commercial areas to art, frameless linear underground lights, with their "invisible power", make every beam of light the finishing touch of the scene.
Related Products

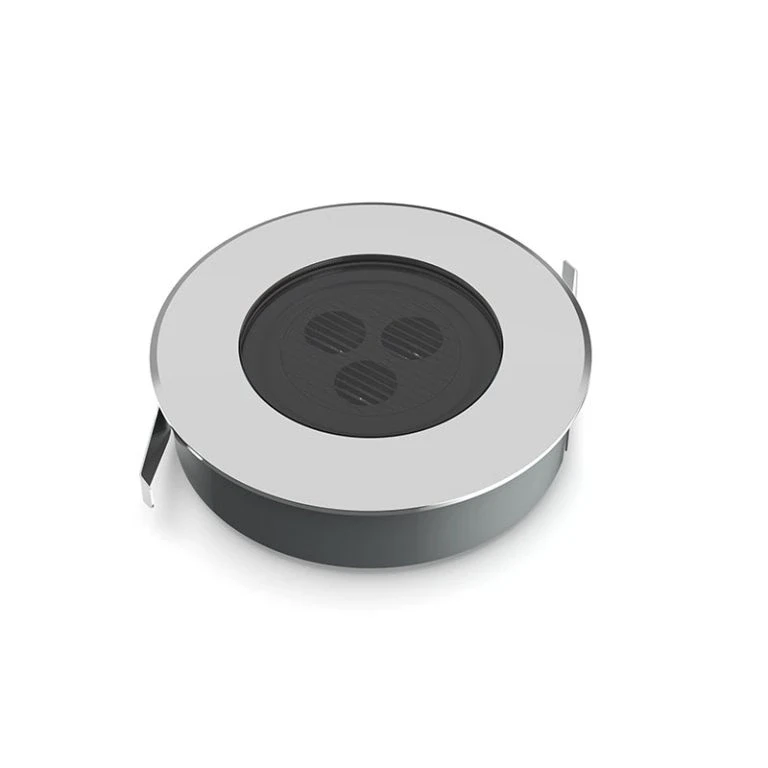

Recessed Ground Lights – FL Series
Underground Landscape Lights FAQs
Underground Landscape Lights are commonly used to illuminate trees, shrubs, sculptures, architectural features and landscape focal points in outdoor environments.
Inground Lights remain hidden within the landscape, creating a cleaner appearance while delivering focused illumination exactly where it is needed.
Narrow beam angles are often used for tall trees or columns, while wider beam angles are suitable for broader landscape features.
Yes. They are widely used in lawns, gardens and landscaped green spaces for accent lighting applications.
They add depth, contrast and visual hierarchy, helping outdoor spaces remain attractive after dark.
Yes. They can provide upward illumination to highlight architectural textures and facade details.
Many Inground Lights use corrosion-resistant aluminum housings and durable stainless-steel trim components.
