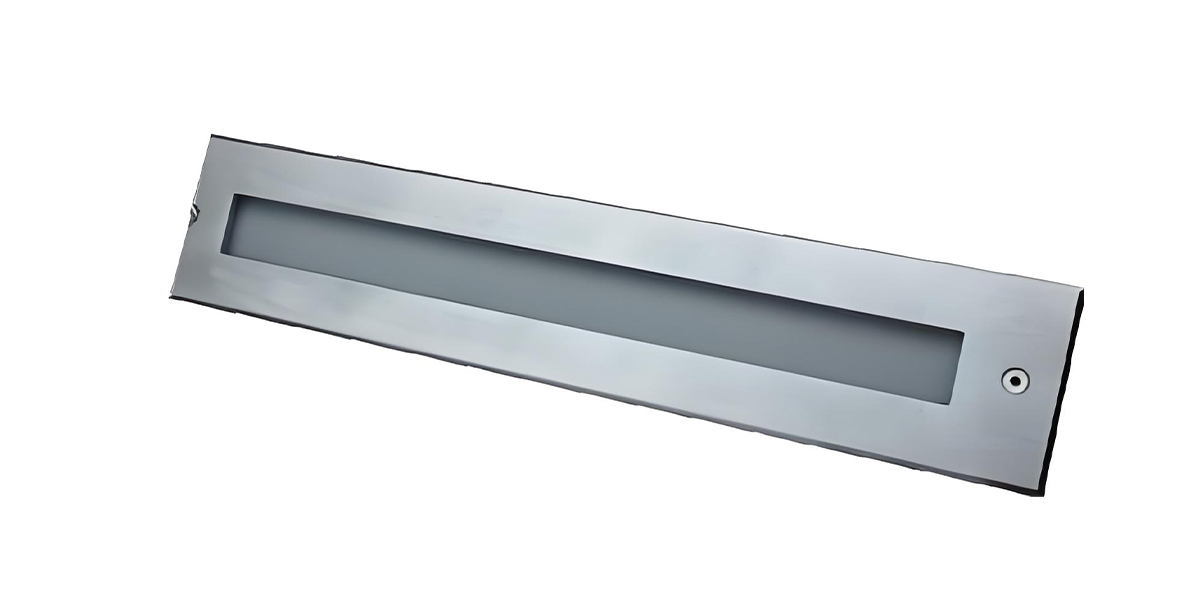

Waterproof Ground Lights
The linear recessed lights are equipped with a thickened 6063 aluminum alloy lamp body and an 8mm tempered glass cover. The luminous efficiency reaches up to 90lm/W, achieving efficient and energy-saving lighting.
The face ring is made of 316 stainless steel, featuring excellent rainproof, corrosion-resistant and impact-resistant properties.
The aluminum alloy housing has outstanding heat conduction and heat dissipation performance, ensuring the long-term stable operation of the lamps and suitable for various outdoor landscape and architectural lighting scenarios.
The face ring is made of 316 stainless steel, featuring excellent rainproof, corrosion-resistant and impact-resistant properties.
The aluminum alloy housing has outstanding heat conduction and heat dissipation performance, ensuring the long-term stable operation of the lamps and suitable for various outdoor landscape and architectural lighting scenarios.
Intelligent Control Of LED Waterproof Ground Lights
This product supports two dimming methods: DALI and 0-10V. DALI dimming is suitable for scenarios requiring precise control and intelligent management, enabling independent control of individual lamps and system integration;
0-10V dimming meets the simple and cost-effective dimming requirements, has strong compatibility, is easy to install, and provides users with flexible and diverse lighting control solutions.
0-10V dimming meets the simple and cost-effective dimming requirements, has strong compatibility, is easy to install, and provides users with flexible and diverse lighting control solutions.
This product supports continuous adjustment of color temperature ranging from 2700K to 4000K. It also offers the option to be equipped with RGB, RGBW or DMX control modes.
Users can freely switch between cool and warm tones according to different scene requirements, precisely creating a comfortable and cozy or bright and efficient lighting environment atmosphere, and flexibly adapting to various application scenarios such as offices, businesses, and homes.
Users can freely switch between cool and warm tones according to different scene requirements, precisely creating a comfortable and cozy or bright and efficient lighting environment atmosphere, and flexibly adapting to various application scenarios such as offices, businesses, and homes.
Datasheet Of LED Waterproof Ground Lights
Model No.
GS-L4-2.2W
GS-L4-3-6W
Power
2.2W
3-6W
Materials
Aluminum + PC lens + stainless steel bracket
Light Efficiency
90lm/W
Driver
CREE/OSRAM
Beam angle
120°
PF
>0.95
LED Lifespan
>50000 hours
IP
IP67
Dimmable ways
DALI/0-10V
Impact resistance
IK08
Working temperature
-30°℃ - +55℃
CRI
>80
CCT
3000K/4000K/5000K/6000K/RGBW/DMX
Warranty
5 years

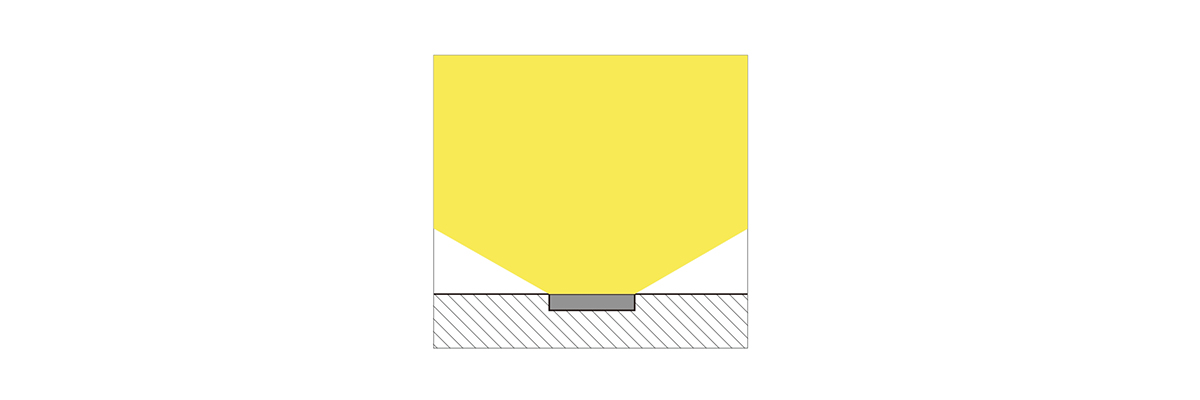

Waterproof Ground Lights Beam Angles
This Waterproof Ground Lights product features a fixed light beam angle of 120°, which is a wide-angle lighting design. The light spot has a wide distribution and covers a large area, enabling effective uniform lighting over a wide range.
It is particularly suitable for scenarios such as warehouses, supermarkets, and underground parking lots that require uniform lighting over a large area.
It is particularly suitable for scenarios such as warehouses, supermarkets, and underground parking lots that require uniform lighting over a large area.
IP67 Level Waterproof Ground Lights
The IP67 level waterproof and dustproof design ensures it can withstand the impact of rain and dust intrusion. It is specially designed for harsh outdoor environments and is a reliable choice for outdoor courtyards, walkways, building exteriors and landscape lighting.
Waterproof Ground Lights Parts Addition
We offer a variety of high-performance accessories to meet diverse lighting requirements: The surface lighting module is made of tempered glass, with a compressive strength of ≥ 500kg, presenting uniform and soft light spots;
The polarized design kit is equipped with an asymmetric optical system, which can precisely control the light and eliminate upward glare;
The LED stretched light film applies a patented diffusion technology, with a light transmittance of > 92%, achieving seamless light emission;
The honeycomb anti-glare grille has a 25° shading angle, with UGR < 16, effectively suppressing glare. All accessories have passed rigorous tests for weather resistance and optical performance.
The polarized design kit is equipped with an asymmetric optical system, which can precisely control the light and eliminate upward glare;
The LED stretched light film applies a patented diffusion technology, with a light transmittance of > 92%, achieving seamless light emission;
The honeycomb anti-glare grille has a 25° shading angle, with UGR < 16, effectively suppressing glare. All accessories have passed rigorous tests for weather resistance and optical performance.
Surface Light
Polarized design
Stretch flim of LED light
Honeycomb
These accessories are widely applicable to building landscape wall washing, square walkway lighting, and the creation of continuous light bands in commercial spaces. We also offer personalized accessory combinations and professional lighting design solutions to help you precisely achieve the desired lighting environment effect.
Waterproof Ground Lights Sizes

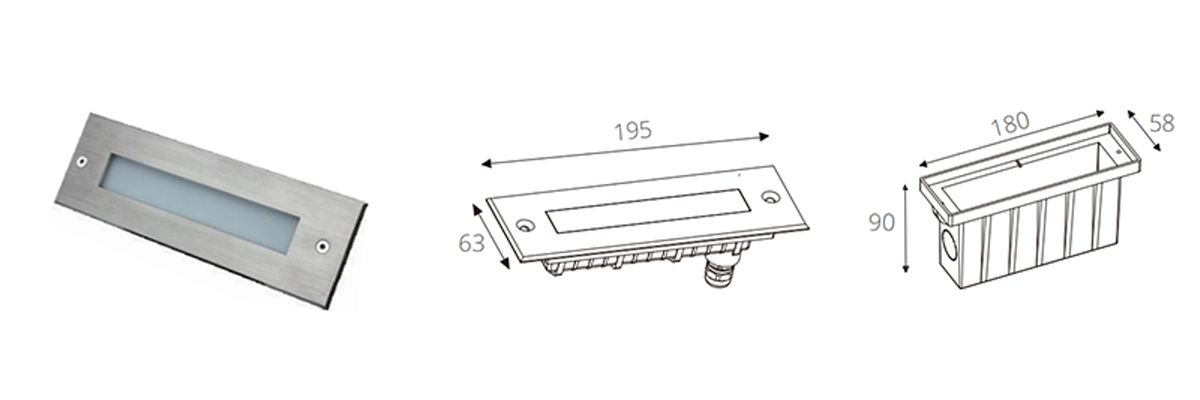

GS-L4-195 series

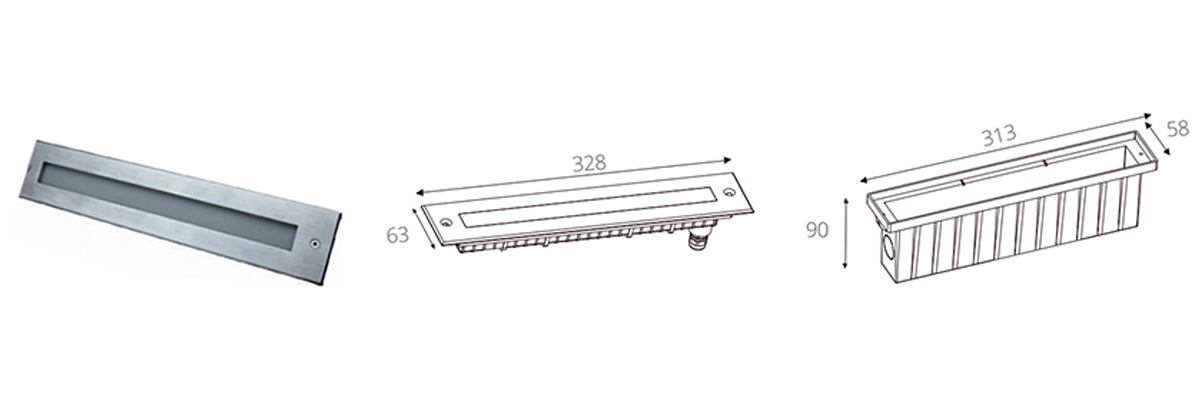

GS-L4-328 series
Applications In Different Scenarios
Large-scale lighting: such as park walkways, parking lots, squares and other areas that require wide coverage.
Decorative lighting: The RGB 3-in-1 model can be used in scenarios such as landscape lighting and festival atmosphere arrangement, enhancing the visual effect through color transformation.
Decorative lighting: The RGB 3-in-1 model can be used in scenarios such as landscape lighting and festival atmosphere arrangement, enhancing the visual effect through color transformation.
Related Products
Recessed Ground Lights – FL Series
Underground Landscape Lights – L Series
Waterproof Ground Lights FAQs
Waterproof Ground Lights are designed to withstand rain, moisture and outdoor environmental conditions, making them suitable for long-term exterior lighting projects.
Yes. Properly installed Inground Lights are designed to continue operating reliably during rainfall and wet weather conditions.
Yes. They are commonly used to illuminate plants, pathways, landscape features and decorative outdoor spaces.
They use sealed housings, waterproof gaskets and protective cable connections to help prevent moisture ingress.
Yes. Corrosion-resistant materials help improve durability in coastal and marine-influenced environments.
Many Inground Lights use die-cast aluminum housings, stainless steel trims and tempered glass lenses for durability.
Reliable waterproof protection helps extend fixture lifespan and maintain stable operation in changing weather conditions.
Routine inspections and occasional cleaning are generally sufficient to maintain long-term performance.
